Centerdrill - Your specialist in flow drilling!

Centerdrill flow-drilling tools, you can obtain a strong thread out of the processed material, with a sufficient number of threads, in just two working steps.
No wobbling, loosening or turning!

STABLE AND WOBBLE-FREE
SCREW CONNECTION
WITH CENTERDRILL

Centerdrill, Flowdrill, Flow drilling tool, Flow drilling, Flow drilling

Centerdrill threaded bushing

No wobbling, loosening or turning
Chipless production
Stable and pull-out threads
DIN thread in just two steps
Bush is made of its own material
Suitable for round tubes, square profiles and sheet metal
Formed threads instead of cut threads
Long lifetime of the Centerdrills
Material thickness from 0.8 - 12mm possible

The CENTERDRILL PROCESS, OPTIMIZE
YOUR MANUFACTURING PROCESSES NOW!

Your Centerdrill threaded bushing made from your own material, even with thin wall thicknesses. Be innovative now and keep up with the times!

PROBLEMS WITH CONVENTIONAL TECHNOLOGIES

THREAD CUTTING

only 1 or 2 threads
not sustainable

WELDING NUT

loosening
only for metal sheets

RIVET NUT

turning
limited stability

Solution

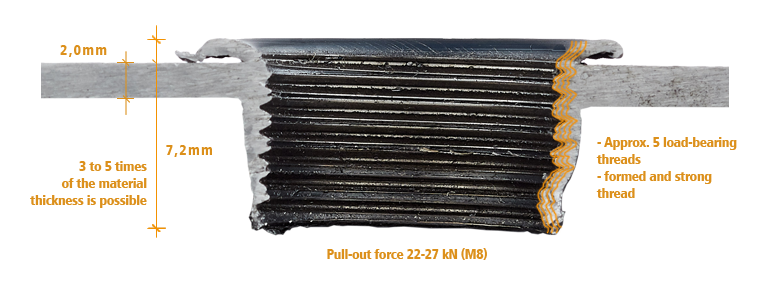

THE CENTERDRILL THREADED BUSHING

stable and with high pull-out forces
DIN thread made from our own material
in just two steps
high precision and centric positioning

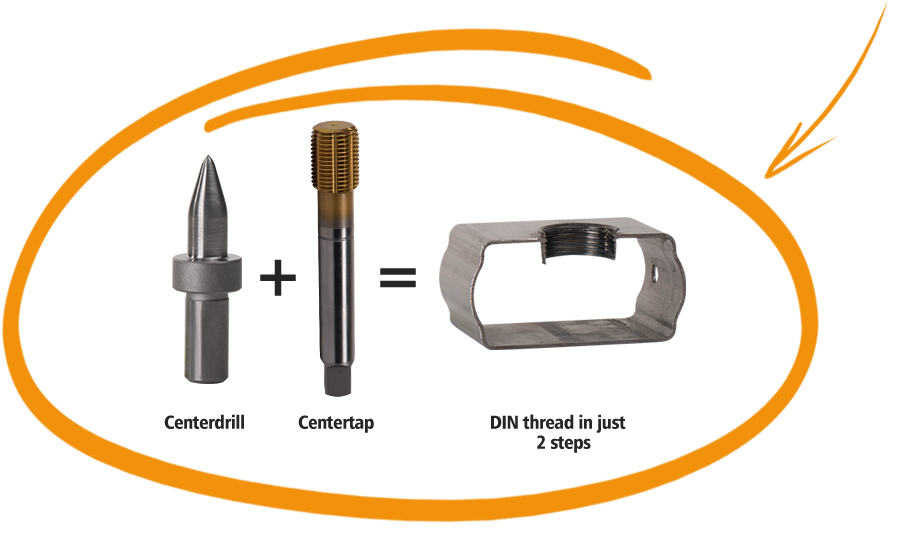

The Centerdrill solution in two steps

1Directly from the manufacturer

2Worldwide Shipping

3Made in Germany

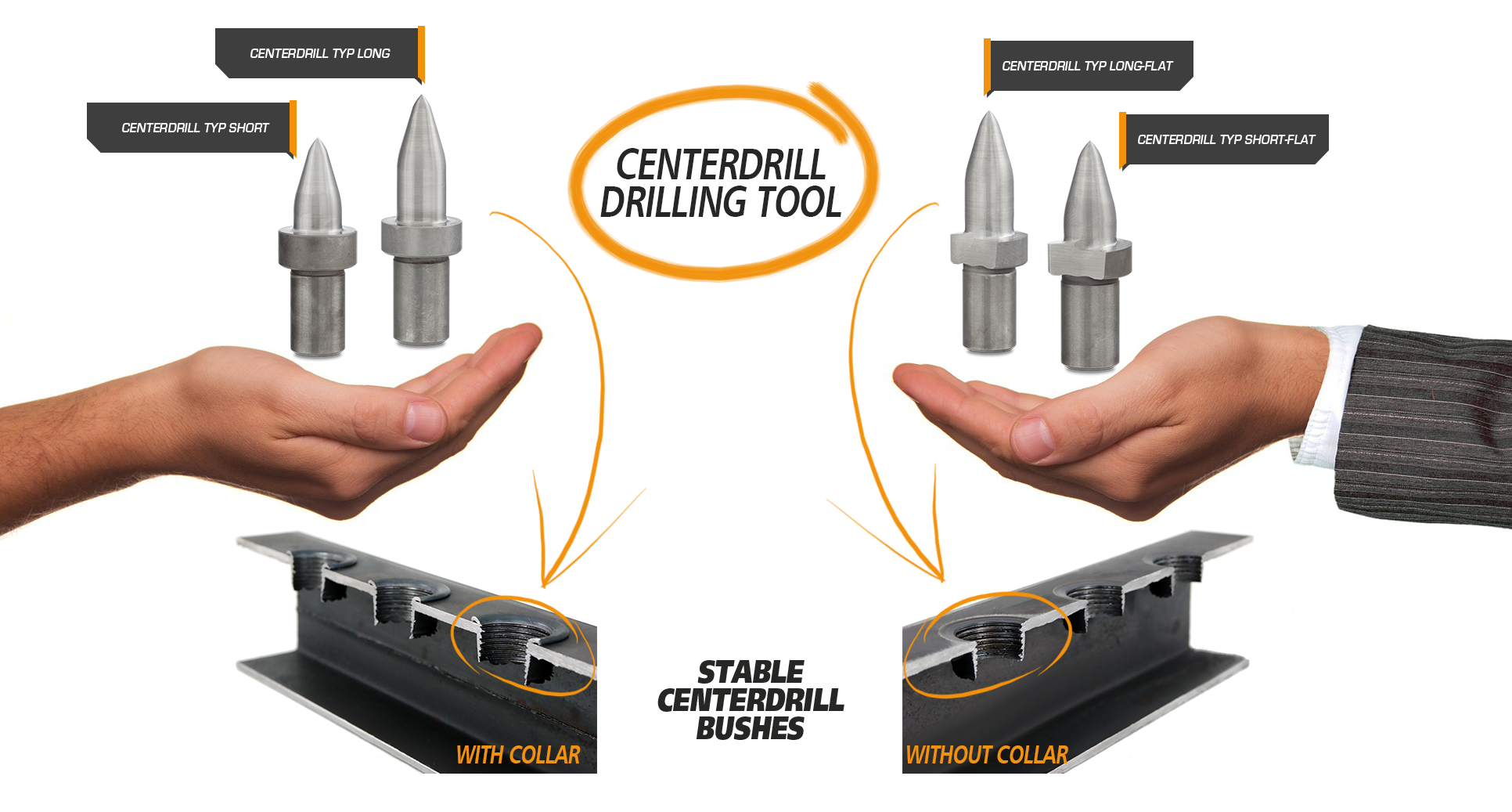

Make the collet chuck ready for use

Surface with collar

Surface flat

Followed by thread forming with centertap

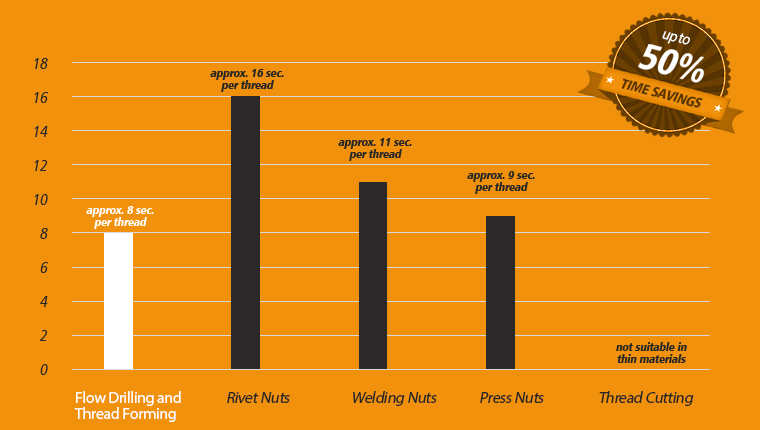

TIME

TIME SAVINGS

Example 2mm steel with M8, estimated tool life
= approx. 8.000 holes with Centerdrill + Centertap

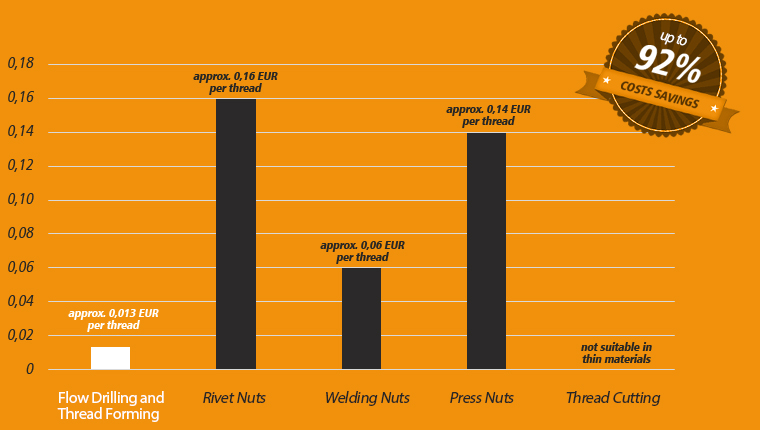

MATERIAL COSTS

SAVINGS

Centerdrill 7.3 long = 76.50 EUR / pc.
Centerdrill 7.3 long = 76.50 EUR / pc.
= = 102.50 / 8.000 holes = 0,013 EUR / DIN thread

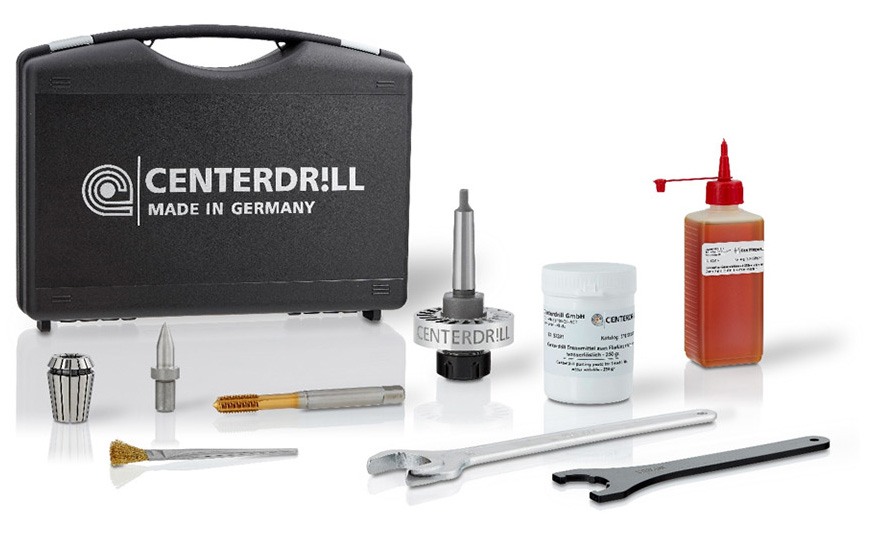

Centerdrill Beginner-Set

With this basic equipment, you are optimally equipped for flow drilling with Centerdrill. So you can get started right away.

1 x Centerdrill tool for flow drilling*
1 x Centertap thread former*
1 x Collet chuck with cooling ring*
1 x parting paste for flow drilling 250gr + 1 x brush
1 x lubricant for thread forming 250ml + 1 x spray cap
1 x centerdrill collet
1 x toolcase (available only with collet chuck MC2)

* price varies depending on size and type!
